鋁條折彎機的設備組成：

Equipment composition of aluminum bar bending machine:

該設備本體由機身機架鋁框背板自動接料裝置步進給料機構折彎機構自動斷料機構電氣控制系統動力控制系統控制箱及觸摸屏人機界面等結構組成。

The device body is composed of an automatic material receiving device for the aluminum frame backplate of the body frame, a step feeding mechanism, a bending mechanism, an automatic material cutting mechanism, an electrical control system, a power control system, a control box, and a touch screen human-machine interface.

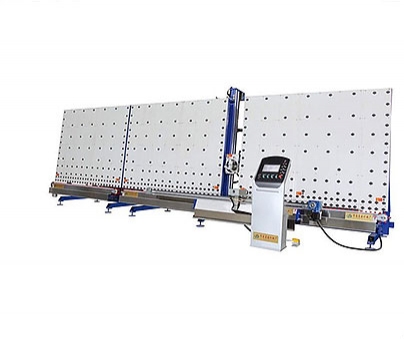

鋁條全自動折彎機設備組成圖

Composition diagram of aluminum bar fully automatic bending machine equipment

自動接料裝置：

Automatic feeding device:

由接頭定位部件和鋁條定位部件組成，當鋁條尾部到達信號發出時，接料系統會自動定位鋁條尾部，等待下一條鋁條的自動續接。

Composed of joint positioning components and aluminum strip positioning components, when the signal is sent at the tail of the aluminum strip, the feeding system will automatically position the tail of the aluminum strip and wait for the automatic continuation of the next aluminum strip.

步進給料機構：當控制系統發出步進長度信號時，由該系統執行給料。

Step feeding mechanism: When the control system sends a step length signal, the system executes feeding.

折彎機構：折彎機構的折彎角度可以精確調節和控制。

Bending mechanism: The bending angle of the bending mechanism can be precisely adjusted and controlled.

自動斷料機構：

Automatic material cutting mechanism:

當初始上料或一個框折彎完成時，斷料機構會自動切斷鋁條。

When the initial feeding or bending of a frame is completed, the cutting mechanism will automatically cut the aluminum strip.

自動斷料機構：

Automatic material cutting mechanism:

當初始上料或一個框折彎完成時，斷料機構會自動切斷鋁條。

When the initial feeding or bending of a frame is completed, the cutting mechanism will automatically cut the aluminum strip.

電氣控制系統：

Electrical control system:

電氣控制系統是整個設備的核心部分，設備的控制軟件安裝在MC運動控制器中。所有的控制指令運算工作輸入輸出信號系統狀態監視，以及與操作人員的信息交流均由該部分完成。

The electrical control system is the core part of the entire equipment, and the control software of the equipment is installed in the MC motion controller. All control instruction calculations, input and output signal system status monitoring, as well as information exchange with operators, are completed by this section.

該系統采用松下支持RTEX總線的A6N伺服及電機。RTEX具有極高的性價比，采用RTEX總線控制系統后，客戶在不增加電機成本的情況下，大幅降低了配線安裝工作。100M的網絡帶寬和RTEX優異的穩定特性，確保了MC1002R與系統各個A6N伺服驅動器之間的控制周期能夠達到0.5ms，從而大幅提高了客戶機器的控制精度。

The system adopts Panasonic's A6N servo and motor that support RTEX bus. RTEX has a very high cost performance ratio. By adopting the RTEX bus control system, customers can significantly reduce wiring and installation work without increasing motor costs. The 100M network bandwidth and excellent stability characteristics of RTEX ensure that the control cycle between MC1002R and various A6N servo drivers in the system can reach 0.5ms, greatly improving the control accuracy of the customer's machine.

動力控制系統：

Power control system:

由數個氣動電磁閥相應氣路眾多氣動元件，以及控制信號回路組成氣動動力系統，負責完成設備復雜的程控動作。

The pneumatic power system is composed of several pneumatic solenoid valves, corresponding pneumatic circuits, numerous pneumatic components, and control signal circuits, responsible for completing complex programmable actions of the equipment.

觸摸屏軟件界面：

Touch screen software interface:

操作人員對設備的使用所需要的大量的數據輸入，以及操作人員需要了解的設備運行的信息，均通過觸摸屏來完成。

The large amount of data input required for the use of equipment by operators, as well as the information about the operation of the equipment that operators need to know, are all completed through the touch screen.

鋁條折彎的工藝流程

The process flow of aluminum bar bending

設備上電后，通過觸摸屏輸入鋁框圖形參數，踩下腳踏開關設備開始運行，控制系統通過判斷原料位置選擇自動上料流程還是直接進入自動折彎流程，并自動判斷當前原料的余料接頭位置是否出現在禁折區。步進給料系統將由控制系統計算后的料長精確的給進折彎刀頭，由折彎系統完成需要的折彎形狀。

After the device is powered on, input the aluminum frame graphic parameters through the touch screen, press the foot switch, and the device starts running. The control system selects the automatic feeding process or directly enters the automatic bending process by judging the position of the raw materials, and automatically determines whether the position of the remaining material joints of the current raw materials is outside the prohibited folding area. The step feed material system will accurately feed the material length calculated by the control system to the bending blade, and the bending system will complete the required bending shape.

重復以上兩步，直完成整個鋁框成形流程。

Repeat the above two steps until the entire aluminum frame forming process is completed.

在鋁框折彎過程中，隨時會出現當前加工的鋁條即將用完的情況，通過系統自動判斷可使后續鋁條自動續接當前鋁條尾部，不中斷當前鋁條的成形工作。

During the bending process of the aluminum frame, there may be situations where the current processed aluminum bars are about to be used up. The system automatically determines that the subsequent aluminum bars can be automatically connected to the tail of the current aluminum bar without interrupting the forming work of the current aluminum bar.

控制方案

Control plan

控制器選用和利時MC1002R，是專用于運動控制的可編程控制器，一般用作單臺復雜運動機械設備的控制核心。MC1002R支持RTEX總線控制系統，可以連接多達32軸的松下A6N伺服。

The controller selected is the Helishi MC1002R, which is a programmable controller specifically designed for motion control and is generally used as the control core for a single complex motion mechanical equipment. MC1002R supports RTEX bus control system and can connect up to 32 Panasonic A6N servos.

MC具有高精度64位運動解算，雙核ARM Cortex-A9 CPU，667M主頻控制器采用ARM Cortex-A9 CPU667M主頻；運算采用64位雙精度浮點數進行運算，確保運算精度。

MC has high-precision 64 bit motion calculation, dual core ARM Cortex-A9 CPU, and 667M main frequency controller using ARM Cortex-A9 CPU667M main frequency; The operation uses 64 bit double precision floating-point numbers to ensure accuracy.

MC1002R運動控制器

MC1002R motion controller

設備由觸摸屏MC運動控制器和伺服系統組合成一個開放式運動控制系統，根據折彎工藝要求由MC運動控制器對各個輸出點伺服單元進行控制，送料伺服單元收到命令后驅動伺服電機進行送料，實現鋁條折彎機的運動控制和邏輯控制。控制流程如右圖

The device is composed of a touch screen MC motion controller and a servo system to form an open motion control system. According to the bending process requirements, the MC motion controller controls the servo units at each output point. After receiving the command, the feeding servo unit drives the servo motor to feed, realizing the motion control and logic control of the aluminum bar bending machine. The control process is shown in the figure on the right
